Ratchet Binder Sizes and Grades

Posted by

We occasionally get questions about the size and grades of our ratchet binders. All of our transport package binders support two sizes, and the size will determine the grade for your application. Those two sizes are 5/16" and 3/8", or 3/8" and 1/2"

For 5/16" - 3/8" binders, used as 5/16" the binder is rated G7, and used as a 3/8" the binder is G4.

This transport package is an example of the above ratings.

On the other hand, for the 3/8" - 1/2" binders, used as 3/8" the binder is rated G7, used as 1/2" the binder is G4.

This transport package is an example of these ratings.

If you use binders rated 5/16" G7 and 3/8" G4 with 3/8" transport chains, the binder becomes the weak link at a rating of Grade 43, even if your 3/8" chains are grade 70. It is your responsibility to confirm these ratings on your binders and to safely use at least the minimum grade necessary for all components used to secure your loads. If you have any questions or concerns about any of your equipment, please contact us at 480-502-2225

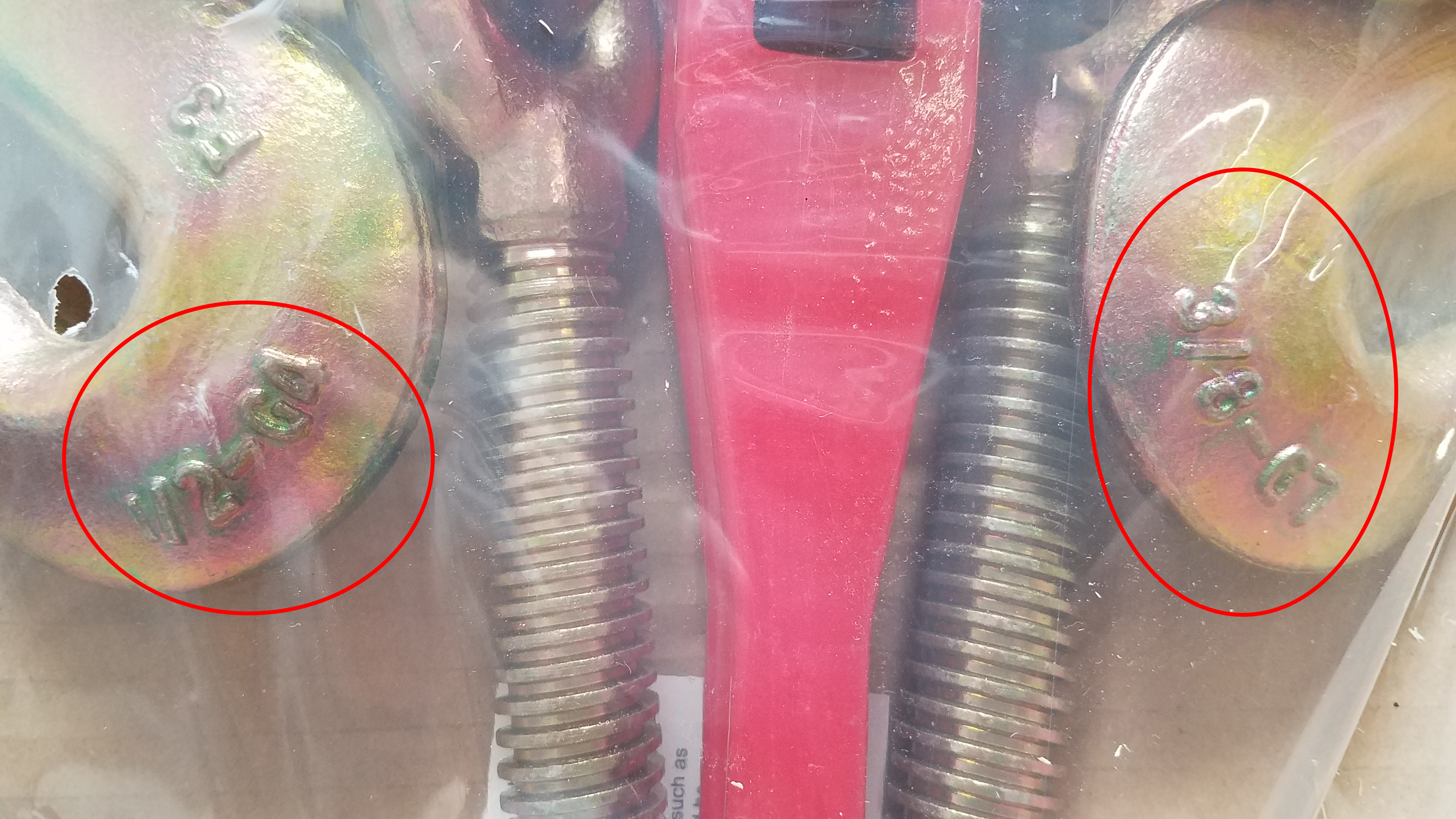

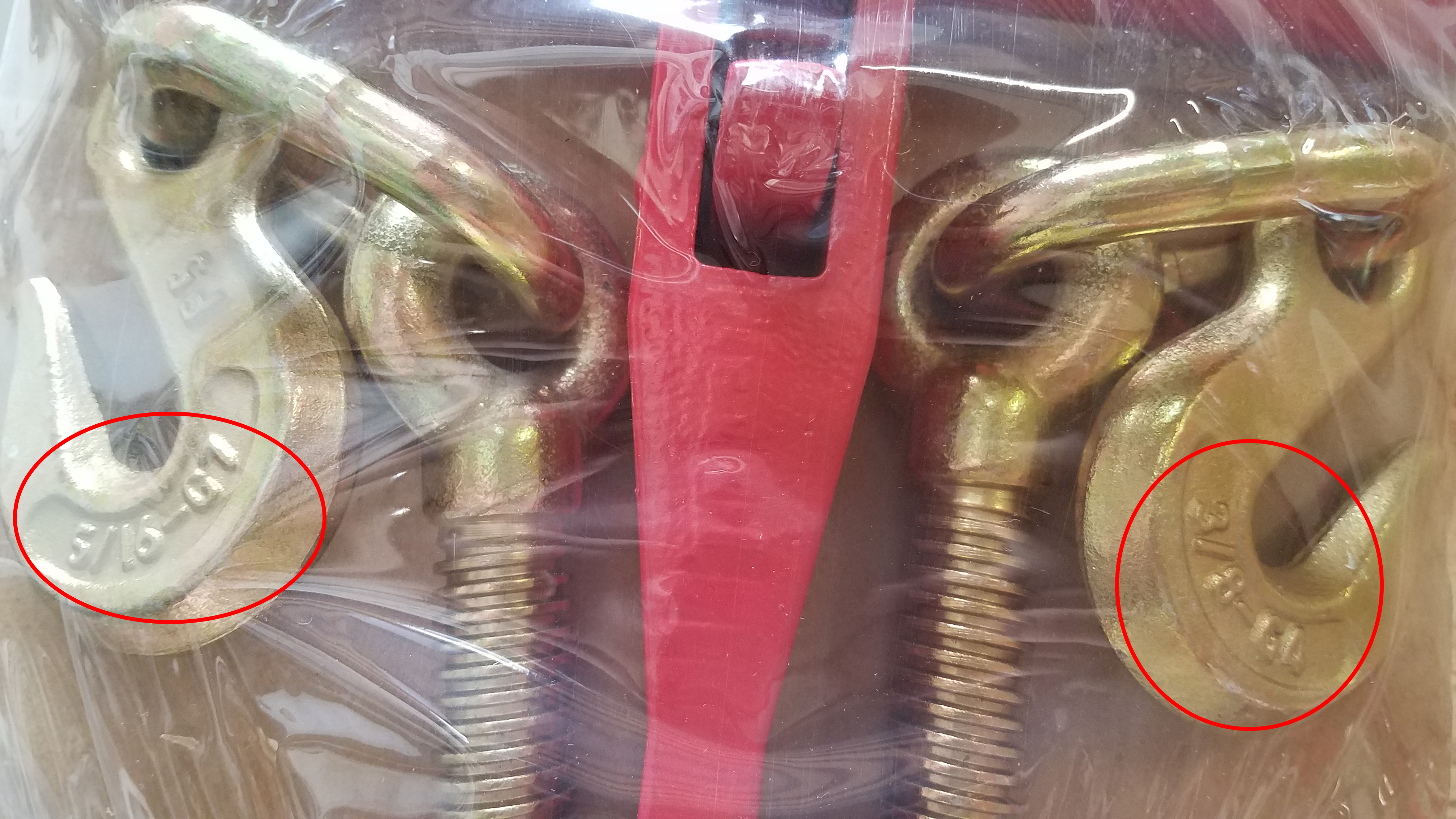

Note that each binder is imprinted with both sizes that are supported on both hooks. If you flip the hook over, you'll see the other supported size on that side, as circled in the images below:

5/16" - G7 or 3/8" - G4

1/2" - G4 or 3/8" - G7
