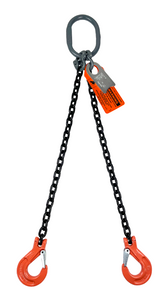

Chain Sling - 9/32" x 5' Double Leg with Sling Hooks and Adjusters - Grade 100

This 9/32-inch Grade 100 double-leg chain sling has a length of 5 feet. The sling-hook configuration connects to suitable lifting points; check attachment fit and seat the load correctly. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

• Chain size: 9/32 inch
• Chain grade: 100
• Length: 5 feet
• Leg configuration: Double leg
• Connections: Sling Hooks and Adjusters
• Certification: Certified by Advantage Rigging
• Compliance: OSHA and ASME B30.9 compliant

Working load limits

• 7,400 lb at 60°
• 6,100 lb at 45°
• 4,300 lb at 30°

Use with a lifting plan that accounts for both leg loads, sling angle, and the load's center of gravity. Follow the working load limit on the assembly's identification tag.

Call 480-502-2225 for custom lengths or connection options.
