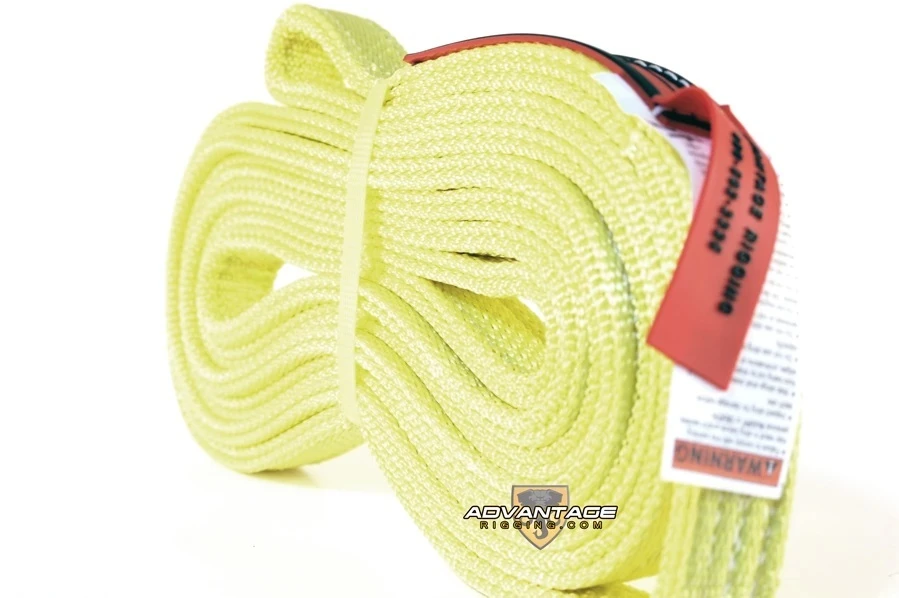

Nylon Endless Slings
Advantage Rigging sells endless nylon lifting slings in 1" and 2" widths, in 1 and 2 ply, from 3 to 14 feet long, plus a 3" x 6' 1-ply sling. Vertical working load limits (WLL) run from 3,200 lb to 12,400 lb. Each sling's tag shows its rating for vertical, choker and basket hitches. Made in the USA. Need a size you don't see? Call 480-502-2225. Ships from Gilbert, AZ.
Shop by ply: 1 ply · 2 ply. Related: Nylon eye and eye slings · Sling protectors · Polyester slings · Sling inspection
Nylon endless sling WLL chart
These ratings match the tags on our endless slings. Choose a width and ply whose rating for your hitch meets or exceeds the load. Basket ratings assume both legs are vertical, and capacity drops as the legs angle out. The WLL on your sling's tag always governs.
| Width | Vertical (lb) | Choker (lb) | Basket (lb) |
|---|---|---|---|
| 1" | 3,200 | 2,560 | 6,400 |
| 2" | 6,200 | 4,960 | 12,400 |
| 3" | 9,400 | 7,520 | 18,800 |
| Width | Vertical (lb) | Choker (lb) | Basket (lb) |
|---|---|---|---|
| 1" | 6,200 | 4,960 | 12,400 |
| 2" | 12,400 | 9,920 | 24,800 |
Nylon endless sling questions
What is an endless sling?
A continuous loop of nylon webbing with no separate eyes. It can be rigged in a vertical, choker or basket hitch, and you can rotate it between lifts so the wear points change.
How does an endless sling compare with an eye and eye sling?
Our endless slings are tagged at twice the rating of an eye and eye sling of the same width and ply. For example, a 2" 2-ply endless sling is rated 12,400 lb vertical, 9,920 lb choker and 24,800 lb basket, and the same size in eye and eye is rated 6,200 lb, 4,960 lb and 12,400 lb.
Where should nylon slings not be used?
OSHA 1910.184 says nylon web slings must not be used around acids or phenolics, or above 180°F.
How often do nylon slings need to be inspected?
OSHA 1910.184 requires a competent person to inspect each sling every day before use. ASME B30.9 also calls for documented periodic inspections at least once a year, and more often in severe service. Advantage Rigging inspects slings: see Sling Inspection.
When must a nylon sling be taken out of service?
OSHA 1910.184 requires immediate removal for acid or caustic burns, melting or charring of any part of the surface, snags, punctures, tears or cuts, or broken or worn stitches. ASME B30.9 also removes a sling when its tag is missing or unreadable.
