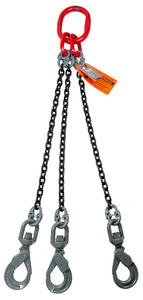

Chain Sling - 1/2" x 6' Triple Leg with Positive Locking Hooks - Grade 80 - Main

Advantage Rigging - Chain Sling - 1/2" x 6' Triple Leg with Positive Locking Hooks - Grade 80

Advantage Rigging
SKU:
TOPL 1 2 6
|
UPC:
748077972188
$1,046.74
(No reviews yet)
Weight:
82.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

This 1/2-inch Grade 80 triple-leg chain sling has a length of 6 feet. The positive-lock hook style provides a closing connection that must be checked for correct engagement before each lift.

Product details

  • Chain size: 1/2 inch
  • Chain grade: 80
  • Length: 6 feet
  • Leg configuration: Triple leg
  • Connections: Positive Locking Hooks
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 31,200 lb at 60°
  • 25,500 lb at 45°
  • 18,000 lb at 30°

Plan leg loading around the load's center of gravity and attachment locations. The tagged working load limit must cover the actual sling angles and load distribution.

Call 480-502-2225 for custom lengths or connection options.

Additional Information
Chain Size:
1/2"
Grade:
Grade 80
Legs:
Triple leg
Reach:
6 feet
Fittings:
Positive Locking Hooks
WLL at 60°:
31,200 lb
WLL at 45°:
25,500 lb
WLL at 30°:
18,000 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
