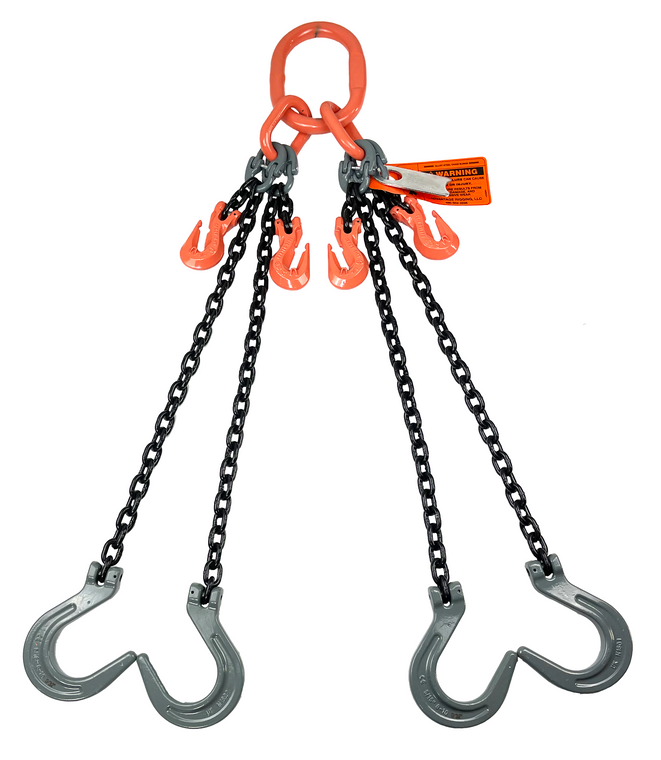

Advantage Rigging - Chain Sling - 3/8" x 6' Quad Leg with Foundry Hooks and Adjusters - Grade 100

Advantage Rigging
SKU:
QOFa 3 8 6 100
|
UPC:
603016249496
$1,011.60
(No reviews yet)
Weight:
68.20 LBS
Current Stock:
Adding to cart… The item has been added

This 3/8-inch Grade 100 quad-leg chain sling has a length of 6 feet. The foundry hook style offers an open connection for suitable load attachments; confirm fit and load seating before use. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

  • Chain size: 3/8 inch
  • Chain grade: 100
  • Length: 6 feet
  • Leg configuration: Quad leg
  • Connections: Foundry Hook and Adjuster
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 22,900 lb at 60°
  • 18,700 lb at 45°
  • 13,200 lb at 30°

Account for sling angle and unequal leg loading when planning the lift. A four-leg configuration does not establish four times a single-leg capacity; use the assembly's tagged rating.

Call 480-502-2225 for custom lengths or connection options.

Chain Size:
3/8"
Grade:
Grade 100
Legs:
Quad leg
Reach:
6 feet
Fittings:
Foundry Hook and Adjuster
WLL at 60°:
22,900 lb
WLL at 45°:
18,700 lb
WLL at 30°:
13,200 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
