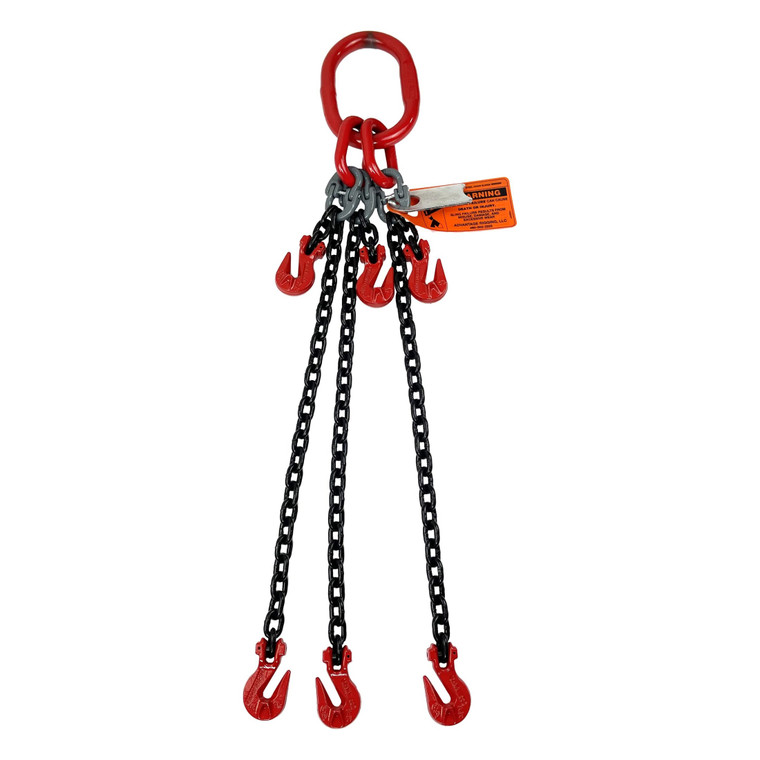

Chain Sling - 9/32" x 10' Triple Leg with Grab Hook and Adjusters - Grade 80 - Main

Advantage Rigging - Chain Sling - 9/32" x 10' Triple Leg with Grab Hooks and Adjusters - Grade 80

Advantage Rigging
SKU:
TOGa 9 32 10
|
UPC:
603016252168
$456.24
(No reviews yet)
Weight:
31.40 LBS
Current Stock:
Adding to cart… The item has been added
Description

This 9/32-inch Grade 80 triple-leg chain sling has a length of 10 feet. The grab-hook configuration engages compatible chain links; use the hook only in its approved loading arrangement. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

  • Chain size: 9/32 inch
  • Chain grade: 80
  • Length: 10 feet
  • Leg configuration: Triple leg
  • Connections: Grab Hook and Adjusters
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 9,100 lb at 60°
  • 7,400 lb at 45°
  • 5,200 lb at 30°

Plan leg loading around the load's center of gravity and attachment locations. The tagged working load limit must cover the actual sling angles and load distribution.

Call 480-502-2225 for custom lengths or connection options.

Additional Information
Chain Size:
9/32"
Grade:
Grade 80
Legs:
Triple leg
Reach:
10 feet
Fittings:
Grab Hook and Adjusters
WLL at 60°:
9,100 lb
WLL at 45°:
7,400 lb
WLL at 30°:
5,200 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
