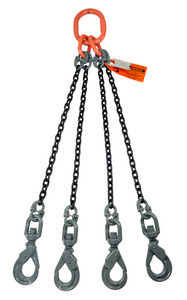

Chain Sling - 9/32" x 6' Quad Leg with Swivel Positive Locking Hooks and Adjusters - Grade 100 - Main

Advantage Rigging - Chain Sling - 9/32" x 6' Quad Leg with Swivel Positive Locking Hooks and Adjusters - Grade 100

Advantage Rigging
SKU:
QOPLSa 100 9 32 6
|
UPC:
603016254902
$1,121.02
(No reviews yet)
Weight:
36.90 LBS
Current Stock:
Adding to cart… The item has been added
Description

This 9/32-inch Grade 100 quad-leg chain sling has a length of 6 feet. The swivel connection supports positioning during setup; rotation under load requires specific manufacturer approval. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

  • Chain size: 9/32 inch
  • Chain grade: 100
  • Length: 6 feet
  • Leg configuration: Quad leg
  • Connections: Swivel Positive Locking Hooks and Adjusters
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 11,200 lb at 60°
  • 9,100 lb at 45°
  • 6,400 lb at 30°

Account for sling angle and unequal leg loading when planning the lift. A four-leg configuration does not establish four times a single-leg capacity; use the assembly's tagged rating.

Call 480-502-2225 for custom lengths or connection options.

Additional Information
Chain Size:
9/32"
Grade:
Grade 100
Legs:
Quad leg
Reach:
6 feet
Fittings:
Swivel Positive Locking Hooks and Adjusters
WLL at 60°:
11,200 lb
WLL at 45°:
9,100 lb
WLL at 30°:
6,400 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
