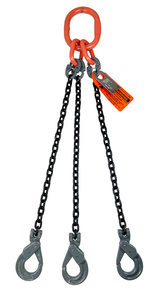

Chain Sling - 9/32" x 6' Triple Leg with Positive Locking Hooks and Adjusters - Grade 100 - Main

Advantage Rigging - Chain Sling - 9/32" x 6' Triple Leg with Positive Locking Hooks and Adjusters - Grade 100

Advantage Rigging
SKU:
TOPLa 100 9 32 6
|
UPC:
603016252397
$649.94
(1 review)
Weight:
27.10 LBS
Current Stock:
Adding to cart… The item has been added
Description

This 9/32-inch Grade 100 triple-leg chain sling has a length of 6 feet. The positive-lock hook style provides a closing connection that must be checked for correct engagement before each lift. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

  • Chain size: 9/32 inch
  • Chain grade: 100
  • Length: 6 feet
  • Leg configuration: Triple leg
  • Connections: Positive Locking Hooks and Adjusters
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 11,200 lb at 60°
  • 9,100 lb at 45°
  • 6,400 lb at 30°

Plan leg loading around the load's center of gravity and attachment locations. The tagged working load limit must cover the actual sling angles and load distribution.

Call 480-502-2225 for custom lengths or connection options.

Additional Information
Chain Size:
9/32"
Grade:
Grade 100
Legs:
Triple leg
Reach:
6 feet
Fittings:
Positive Locking Hooks and Adjusters
WLL at 60°:
11,200 lb
WLL at 45°:
9,100 lb
WLL at 30°:
6,400 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
