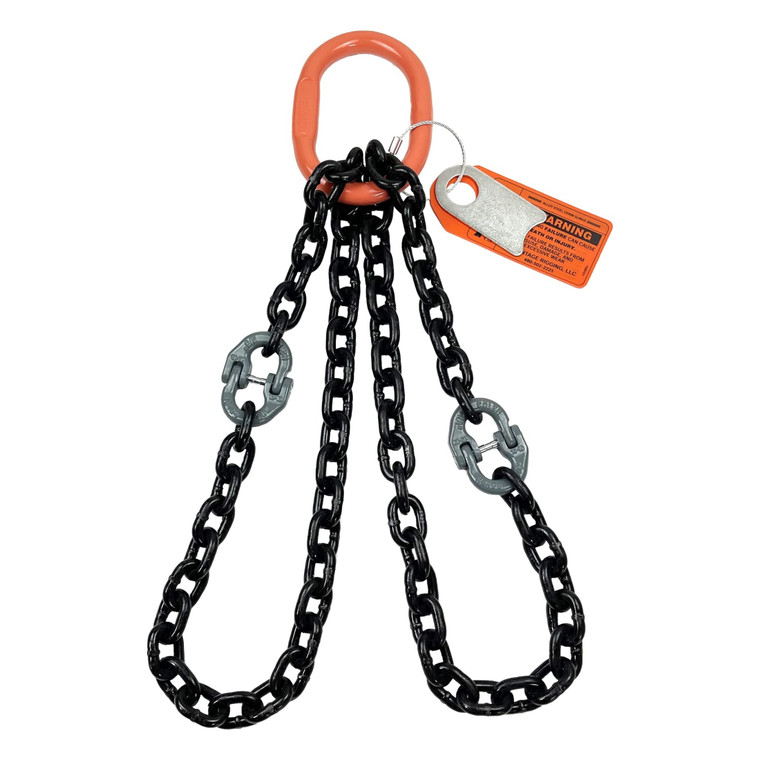

Chain Sling - 5/16" x 8' Double Leg with Endless Baskets - Grade 100 - Main

Advantage Rigging - Chain Sling - 5/16" x 8' Double Leg with Endless Baskets - Grade 100

SKU:
DOGR 100 5 16 8
|
UPC:
729910680347
$322.04
(No reviews yet)
Weight:
42.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

This 5/16-inch Grade 100 double-leg chain sling has a length of 8 feet. The endless basket configuration is intended to support a load from below in its specified basket arrangement.

Product details

  • Chain size: 5/16 inch
  • Chain grade: 100
  • Length: 8 feet
  • Leg configuration: Double leg
  • Connections: Endless Baskets
  • Certification: Certified by Advantage Rigging
  • Compliance: OSHA and ASME B30.9 compliant

Working load limits

  • 9,900 lb at 60°
  • 8,100 lb at 45°
  • 5,700 lb at 30°

Use with a lifting plan that accounts for both leg loads, sling angle, and the load's center of gravity. Follow the working load limit on the assembly's identification tag. Confirm the rated basket configuration and required bearing diameter.

Call 480-502-2225 for custom lengths or connection options.

Additional Information
Chain Size:
5/16"
Grade:
Grade 100
Legs:
Double leg
Reach:
8 feet
Fittings:
Endless Baskets
WLL at 60°:
9,900 lb
WLL at 45°:
8,100 lb
WLL at 30°:
5,700 lb
Material:
Alloy steel chain
Standard:
ASME B30.9
Country of Origin:
United States
