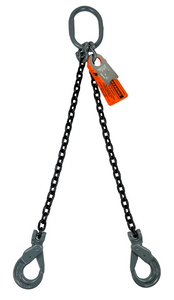

Chain Sling - 9/32" x 5' Double Leg with Positive Locking Hooks and Adjusters - Grade 100

This 9/32-inch Grade 100 double-leg chain sling has a length of 5 feet. The positive-lock hook style provides a closing connection that must be checked for correct engagement before each lift. The adjuster configuration allows the effective leg length to be set within the assembly's approved adjustment range.

Product details

• Chain size: 9/32 inch
• Chain grade: 100
• Length: 5 feet
• Leg configuration: Double leg
• Connections: Positive Locking Hooks and Adjusters
• Certification: Certified by Advantage Rigging
• Compliance: OSHA and ASME B30.9 compliant

Working load limits

• 7,400 lb at 60°
• 6,100 lb at 45°
• 4,300 lb at 30°

Use with a lifting plan that accounts for both leg loads, sling angle, and the load's center of gravity. Follow the working load limit on the assembly's identification tag.

Call 480-502-2225 for custom lengths or connection options.
